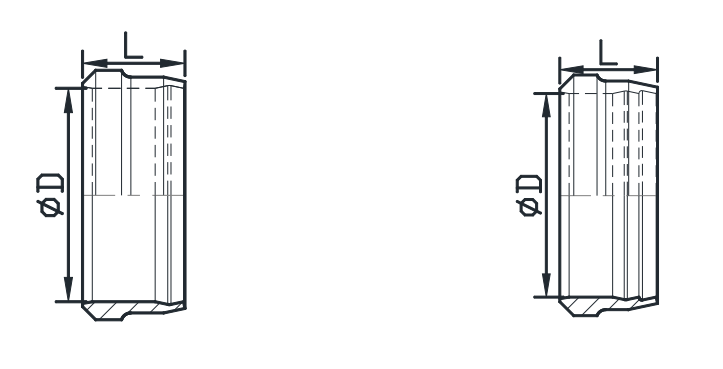

| ØD | L | PART CODE | WP (bar) |
|---|---|---|---|
| 06 | 8.5 | SBF 06L | 250 |
| 08 | 8.5 | SBF 08L | 250 |
| 10 | 9.0 | SBF 10L | 250 |
| 12 | 9.5 | SBF 12L | 250 |
| 15 | 10.0 | SBF 15L | 250 |
| 18 | 10.0 | SBF 18L | 160 |
| 22 | 10.5 | SBF 22L | 160 |
| 28 | 10.5 | SBF 28L | 100 |
| 35 | 13.0 | SBF 35L | 100 |
| 42 | 13.5 | SBF 42L | 100 |
| 06 | 9.5 | SBF 06S | 630 |
| 08 | 8.5 | SBF 08S | 630 |
| 10 | 9.0 | SBF 10S | 630 |
| 12 | 9.5 | SBF 12S | 630 |
| 14 | 10.0 | SBF 14S | 630 |
| 16 | 10.5 | SBF 16S | 400 |
| 20 | 12.5 | SBF 20S | 400 |
| 25 | 12.5 | SBF 25S | 400 |
| 30 | 13.0 | SBF 30S | 250 |
| 38 | 13.5 | SBF 38S | 250 |
