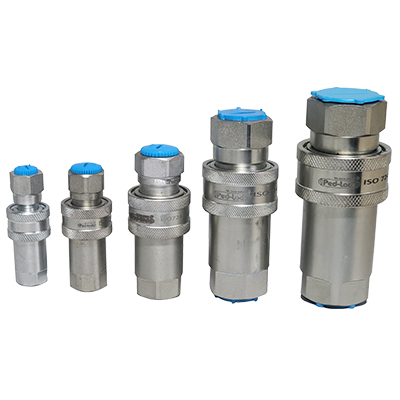

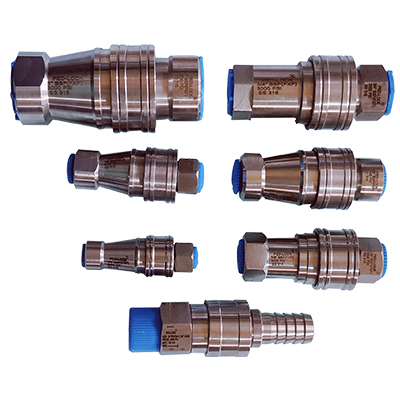

Quick Release Coupling

Quick Release Coupling
|

Veermani Instruments is a prominent manufacturer and supplier of high-quality Quick Release Couplings in Mumbai, India. Our extensive product range includes Stainless Steel Quick Release Couplings, Bauer Type Couplings, Brass Quick Release Couplings, SS 304 Quick Release Couplings, SS 316 Quick Release Couplings, and SS 316L Quick Release couplings—designed for efficient, leak-proof connections in various industrial systems. We cater to industries such as chemical, oil & gas, food & beverage, pharmaceuticals, and more.

Specifications:

Rating: Up to 6,000 psi @ up to 180°F
Stem & Body Seal: ‘O-ring (Nitrile & Viton)
Seat Packing: PTFE
Size: 1/4” to 3”
Connections: Threaded
Body: Bar Stock & Forged Steel
Material: SS, CS and other Material as Per Your Requirements

Application:

Chemicals industry
Food Fats and fertilizer industry
building
Construction industry

Key Features:

SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. peek/delrin seat for better performance.
Ball hard chrome plated for smooth operation.

Physical Features:

Pressure rating 420 kg/cm2

Testing:

For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
Working pressure : 6000 psi (420 bar)

Hydro Tests:

Performed with pure water at 1-1/2 times of the working pressure.
Other tests like helium, seismic are available upon request.
