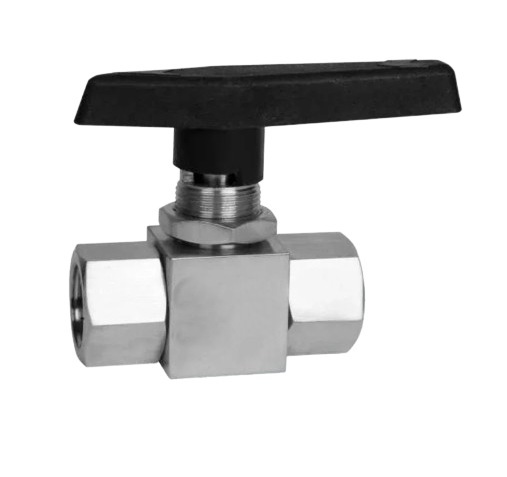

Panel Mounting OD Type 2-Way/3-Way Ball Valve

Specifications:

Rating : Up to 3,000 psi @ up to 600ºF
Stem & Body Seal : ‘O’ring (Nitrile & Viton)
Seat Packing : Ptfe & Peek
Tube Size : 1/4” to 1”
Connections : Tube size
Body : Bar Stock & Forged Steel
Material : SS, CS and other Material Other as Per Your Requirements

Application:

Chemicals industry
Food Fats and fertilizer industry
Ship building
Construction industry

Key Features:

SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. Peek/delrin seat for better performance.
Ball hard chrome plated for smooth operation.

Physical Features:

Pressure rating 210 kg/cm2

Testing:

For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
Working pressure: 3000 psi (210 bar)

Hydro Tests:

Performed with pure water at 1-1/2 times of the working pressure.
Other tests like helium, seismic are available upon request.
