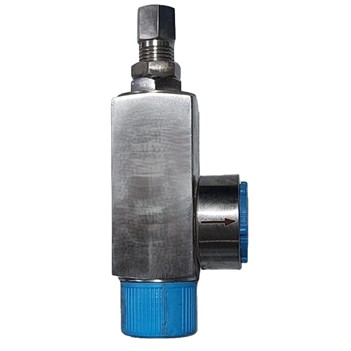

Safety Valves
Specifications:
- Pressure Rating: 6,000 psi @ up to 180ºF
- Stem & Body Seal: ‘O-ring (Nitrile & Viton)
- Seat Packing: PTFE
- Size: 1/4” to 3”
- Connections: Threaded and Flange End
- Body: Bar Stock & Forged Steel
- Material: SS, CS and other Material as Per Your Requirements
Application:
- Chemicals industry
- Food Fats and fertilizer industry
- Ship building
- Construction industry
Key Features:
- SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. VITON seat for better performance.
Physical Features:
- Pressure rating 420 kg/cm2
Testing:
- For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
- Working pressure : 6000 psi (420 bar)
Hydro Tests:
- Performed with pure water at 1-1/2 times of the working pressure.
- Other tests like helium and seismic, are available upon request.
