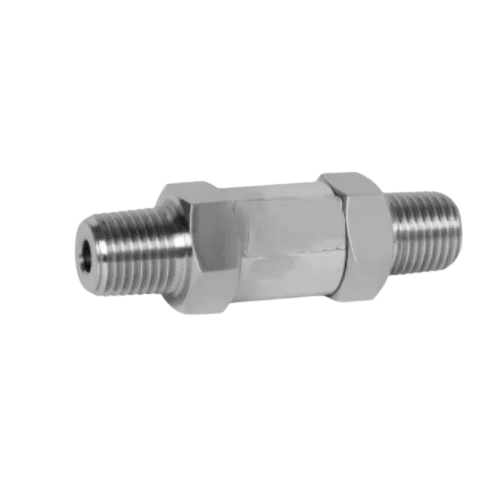

Male to Male Check Valve
Specifications:
- Rating: Up to 6,000 psi @ up to 250ºF
- Stem & Body Seal: ‘O-ring (Nitrile & Viton)
- Tube Size: 1/4” to 1”
- Connections: Threaded
- Body: Bar Stock & Forged Steel
- Material: SS, CS and other Material Other as Per Your Requirements
Application:
- Chemicals industry
- Food Fats and fertilizer industry
- Ship building
- Construction industry
Key Features:
- SS 316 construction for corrosion resistance, full or reduced bore for excellent flow.viton seal for better performance.
- Ball hard chrome plated for smooth operation.
Physical Features:
- Pressure rating 400 kg/cm2
Testing:
- For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
- Working pressure: 6000 psi (431 bar)
Hydro Tests:
- Performed with pure water at 1-1/2 times of the working pressure.
- Other tests like helium, seismic are available upon request.
