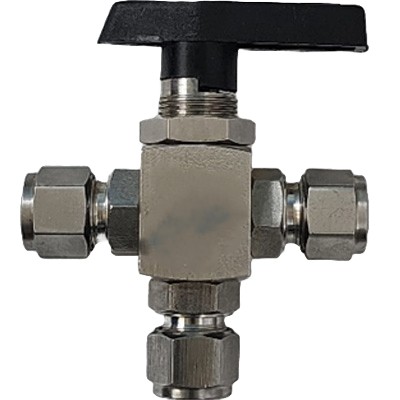

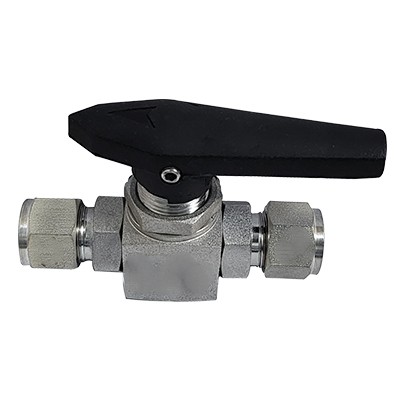

Panel Mounting OD Type 2-Way/3-Way Ball Valve
Specifications:
- Rating : Up to 3,000 psi @ up to 600ºF
- Stem & Body Seal : ‘O’ring (Nitrile & Viton)
- Seat Packing : Ptfe & Peek
- Tube Size : 1/4” to 1”
- Connections : Tube size
- Body : Bar Stock & Forged Steel
- Material : SS, CS and other Material Other as Per Your Requirements
Application:
- Chemicals industry
- Food Fats and fertilizer industry
- Ship building
- Construction industry
Key Features:
- SS 316 construction for corrosion resistance, full or reduced bore for excellent flow. Peek/delrin seat for better performance.
- Ball hard chrome plated for smooth operation.
Physical Features:
- Pressure rating 210 kg/cm2
Testing:
- For seat and seal leakage with a leakage rate of 0.1 std. Cm3.
- Working pressure: 3000 psi (210 bar)
Hydro Tests:
- Performed with pure water at 1-1/2 times of the working pressure.
- Other tests like helium and seismic, are available upon request.
